FTTH Fiber cabinet, SZS-60/150/20 FTTH 144J, 72x SC duplex

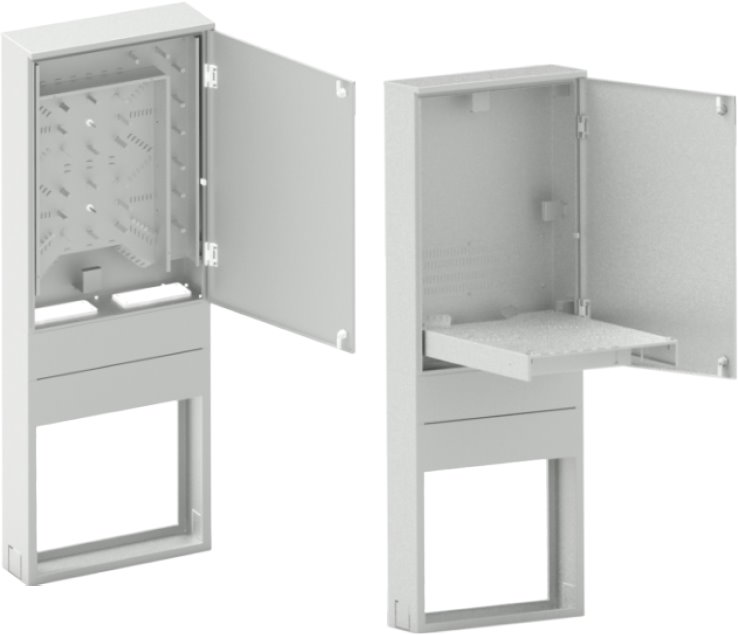

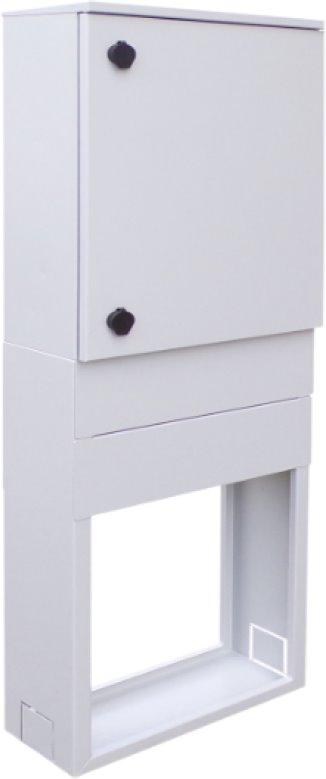

The outdoor FTTH data cabinet with installation in the ground is used to connect optical cables in front of the house with very easy access. The data cabinet allows the connection of up to 144 optical fibers (72x SC duplex connectors) and termination of 12 optical cables.. The data cabinet has a gray color of RAL 7035 and a degree of protection is IP 65. The dimensions of the column are 150 × 50 × 20 cm and its smaller lower part is buried in the ground (60 cm). The upper part with the optics is lockable by 2 locks, which are part of the package.
Key Features
- Capacity for 144 participants (up to 72 SC duplex connectors)
- 60cm recess
- Organization for hanging cables and microtubes coming from the ground
- Lockable with 2 hermetic locks
- Gray RAL 7035 colour
- Degree of protection IP 65, anti-vandal protection IK10
Product specification
Part No.
SZS-60/150/20 FTTH 144J
Weight [kg/km]
32
Protection class
IP65
Design
Outdoor
Holes for connectors
(72) SC Duplex
Material
Sheet metal
Antivandal (Impact protection)
IK10
Width [mm]
500
Height [mm]
1500
Depth [mm]
200
Color
Grey
